EXTRUDED PRODUCTS
Technical articles in RUBBER, SILICONE, PVC

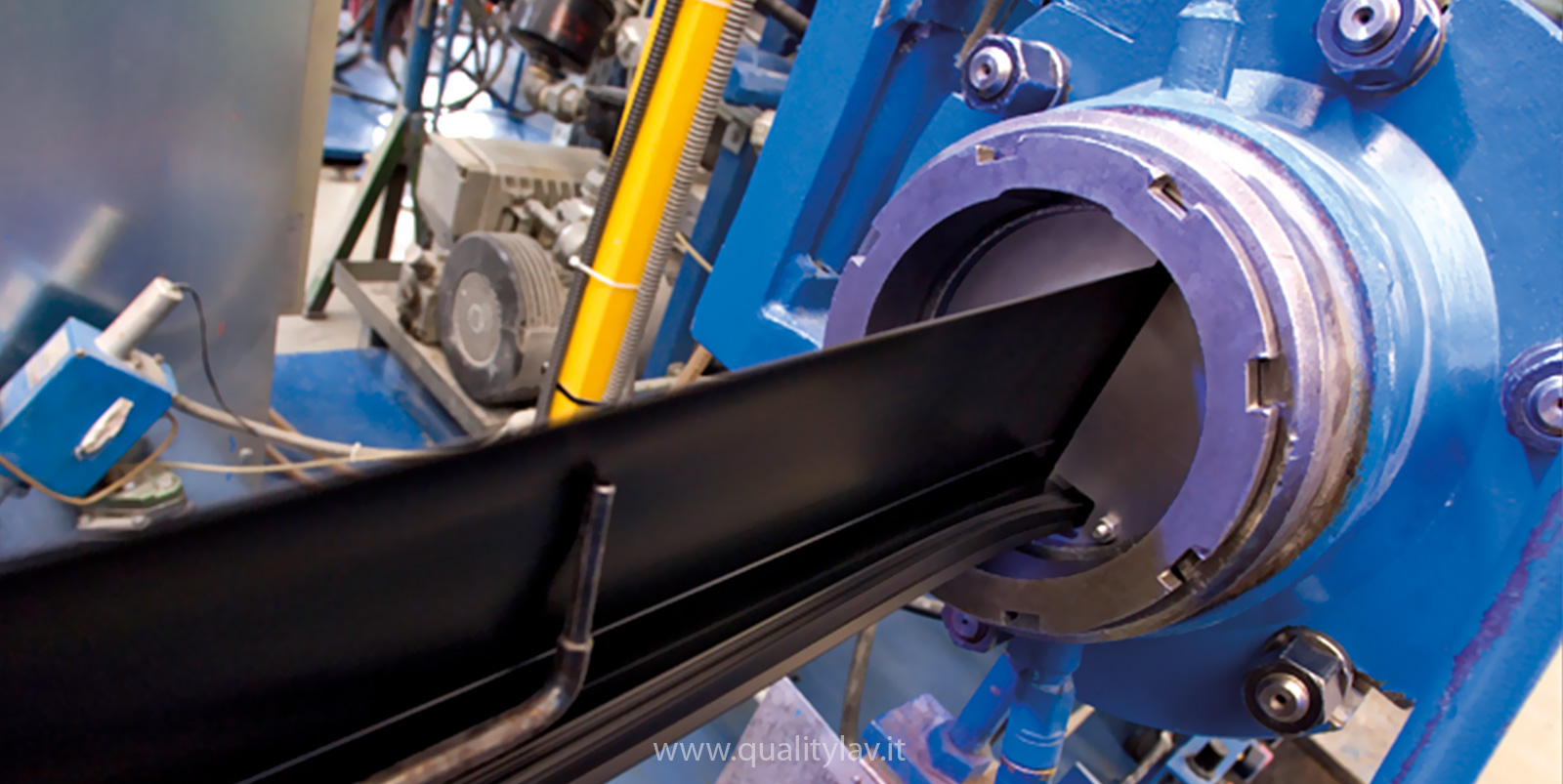

COMPACT AND EXPANDED RUBBER PROFILES
Extruded profiles in natural and synthetic rubber in their compact and expanded versions, supplied in spools and skeins of different lengths depending on the size of the profile.
Cutting, die-cutting, mastic, mould and sheet joints, also angular.
Parts obtained by cutting up to 0.5 mm (washers, sleeves, bushings and feet).
Bonding on one or more sides of the profile with different types of double-sided tape.
Availability Compounds, Hardnesses, Colours, Sections
Available compounds:
Natural rubber (NR); Nitrile rubber (NBR); SBR; EPDM; EPDM Food; Neoprene (CR); Self-extinguishing Neoprene (CR_AE); Viton® (FKM).
Available hardness:
Low hardness: from 40 to 55 Shore A (±5)
Standard: from 60 to 75 Shore A (±5)
High hardness: from 80 to 95 Shore A (±5)
Available colours:
Black;
Natural (only NR);
White (only EPDM);
Sample colours (only EPDM)
Geometrical sections:
Pipes: external diameter from mm 1 to mm 250;
Braided and reinforced pipes;
Round: diameter from mm1 to mm 100;
Rectangular/Square;
Trapezia
Drawing sections:
“U” sections
“P” sections
Lip sections;
Glass fixing sections;
Sections on customer specification
Co-extrusion:
Co-extruded profiles with different colours and hardness (only EPDM)
Co-extruded profiles with expanded rubber (only EPDM)
Special Extruded:
Animated extruded and co-extruded (with animated insert),
Flocked profiles
Available compounds:
EPDM; EPDM Food; Viton® (FKM);
Available densities:
Low density: from 300 to 500 Kg/dm3 (± 0,050) (only EPDM)
Standard: from 600 to 700 Kg/dm3 (± 0,050) (only EPDM)
High density: 900 Kg/dm3 (± 0,050) (only Viton® - FKM)
Available colours:
Standard: Black;
Possibility of colours at request (only EPDM).
Geometrical sections:
Pipes: external diameter from mm 8 to mm 100;
Round: diameter from mm 2 to mm 100;
Rectangular/Square;
Trapezia
Drawing sections:
“U” sections
“P” sections
Lip sections;
Sections on customer specification
Co-extrusion:
Co-extruded profiles with different colours and densities (only EPDM);
Co-extruded profiles with compact rubber (only EPDM).
